Hertz CX165

Hertz CX165

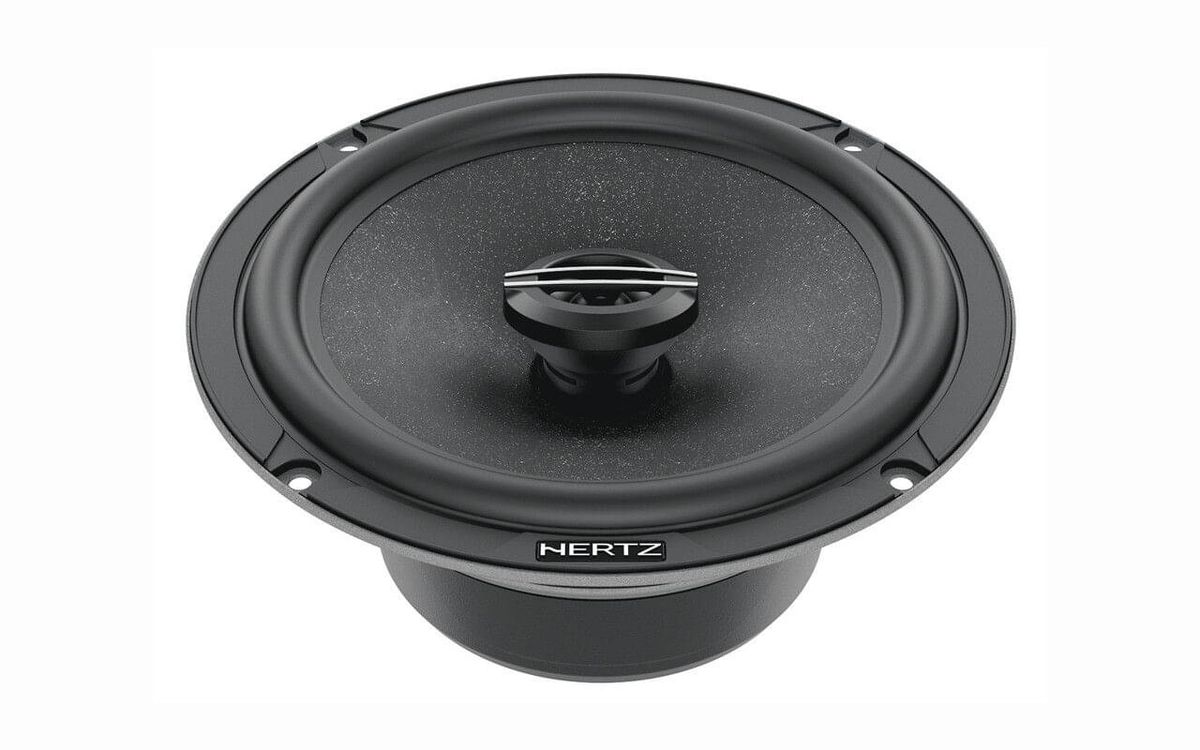

Coaxial loudspeakers represent a major design challenge due to the critical nature of their acoustic output, being installed in an OEM placement often unfavorable to reproduction. For this reason, in order to achieve high performance, a great engineering effort was put into place, promptly addressed by our R&D team. The Cento two-way coaxials CX 165 features the new 24 mm (0.9 in.) Tetolon® dome tweeter that delivers a more musical and detailed sound compared to the more traditional plastic materials. The dispersion has been optimized for off-axis listening. The  SPP-M cone (Semi Pressed Paper-Mica) ensuring superior acoustic and damping characteristics.

Accessories

CPG 165 grile

Optional

High resistance ABS metal finish grille and removable metallic mesh supplied

Data table

Power Handling - Peak W
210
Power Handling - Continuous W
70
Impedance Ω
4
Frequency response Hz
55 ÷ 22k
Sensitivity dB SPL
93
Woofer size mm (in.)
165 (6.5)
Tweeter size mm (in.)
24 (0.9)
Woofer Voice Coil Ø mm (in.)
25 (1)
Tweeter voice coil Ø mm (in.)
13 (0.5)
Woofer magnet
High density flux ferrite
Tweeter magnet
Neodymium
Woofer cone
Semi Pressed Paper-Mica
Tweeter dome
Tetolon®

Features

1. Soft Tetolon® fiber 24 mm (0.9 in.) dome tweeter and 20 mm (0.8 in.) mobile coil cooled with ferrofluid, for extended and natural high frequencies. 2. RHFC ™ (Rotary High Frequency Contour) tweeter angled and directable to the listener for a perfect frequency response in any installation scenario. 3. Tweeter faceplate geometry optimized with FEM simulations (Finite Element Modeling), to provide an extremely linear frequency response in off-axis installations. 4. 25 mm (1 in.) woofer coil featuring an aluminum former to guarantee high excursion and power handling. 5. 165 mm (6.5 in.) semi-pressed paper cone SPP-M (Semi Pressed Paper-Mica) enhanced with Mica powder for an excellent balance between lightness and damping. 6. High-density flux ferrite magnet combined with low-carbon polar plates for reduced distortion at high power levels. 7. Compact and transparent three-spoke basket acoustically combined with a rubber magnet cover for total damping of spurious vibrations. 8. Elegant grille made with high-resistance ABS plastic structure with a metallic finish combined with a protective metal mesh, available as optional.

Technologies

SPP-M

SPP-M (Semi Pressed Paper-Mica) cone enhanced with Mica powder for an excellent balance between lightness and damping.

RHFC™

RHFC™ (Rotary High Frequency Contour) tweeter angled and directable to the listener for a perfect frequency response in any installation scenario.
