Alpine R2-S652

The All-new R-Series Pro Speakers

Alpine’s Legendary R-Series Speakers enter the 3rd generation and are designed with innovative materials to deliver more output and sound simply amazing. You can choose between a professional and standard speaker line to fit your desired sound quality and budget.
If you play your music loud and want others to know, the R-Series speakers are the match for you. You’ll enjoy a center sound stage with speakers that play loud and clear without distortion. The R-Series speakers are tuned with an emphasis on the high- and low-end frequencies, so they deliver power while naturally producing bright, active sound. They are the perfect power and performance match for the R-Series subwoofers and amplifiers.
The all-new 2022 line-up of R-Series speakers are all Hi-Res Audio certified and feature a frequency response up to 40kHz. For the first time, the R-Series line includes a 3-way system and you can even choose from a Professional and Standard speaker line.

2-Way Component PRO Speaker
The R2-S652 is the 2-Way PRO model of the new 2022 R-Series speaker line-up. It features a 16.5cm door woofer and a 4,3cm tweeter with up to 40kHz frequency response.

Glass-Fiber Reinforced Cone
The door woofer features an all-new glass-fiber reinforced cone. This material is very stiff and extremely light-weight, resulting in a super-fast response and highly accurate music reproduction.

Composite Basket and Large Magnets
The standard models (R2-S69C, R2–S65, R2-S69C and R2-S69) feature composite baskets (in comparison to the Aluminum die-cast baskets of the PRO models) – which makes them more affordable. They fit larger magnets than in previous generations (while maintaining the same mounting depth).

Hi-Res Audio Certified Hard Dome Tweeter
The all-new magnesium hard-dome tweeters deliver clear, detailed music reproduction and play up to 40kHz (Hi-Res Audio). You have the option to flush-mount them in their threaded housing (for example in a door panel) or use the included on-dash mounts. The tweeters can be swivelled in their housing to point them right at the sweet-spot.

Easy-Fit Tweeter in OEM Locations
You can simply remove the installation frame and the trim ring of the R-Series tweeter to minimise its overall size and diameter. The tweeter itself is then small enough to fit it in many OEM tweeter locations (inside A-pillars, mirror triangles or door panels) for a stealthy installation.

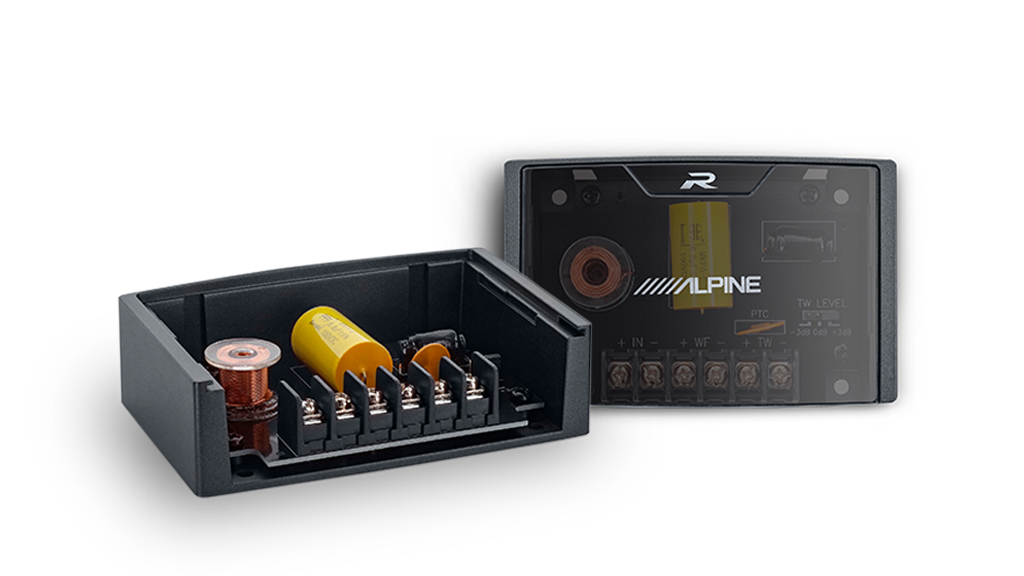

Flexible PRO X-Over Network
This large-size crossover network includes many high-quality components selected for best sound quality. You can adjust the mid-range speaker level by -3dB / 0dB / +3dB and the tweeter level as well by -3dB / 0dB / +3dB.

HAMR Surround
Alpine’s HAMR Surround (High-Amplitude Multi-Roll) allows for a maximum cone excursion, while maintaining excellent control. This results in strong bass at high volumes without distortion.

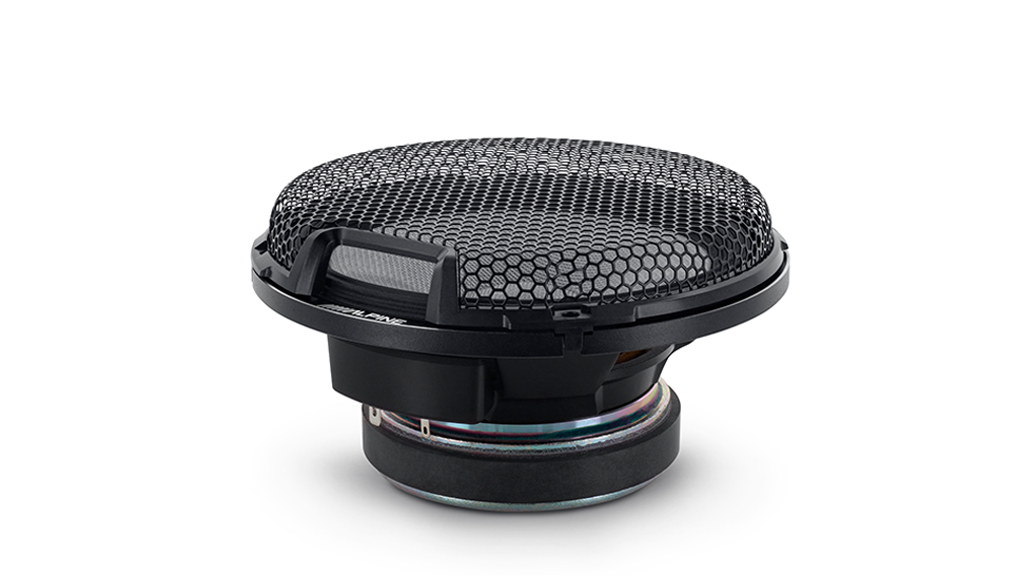

New Speaker Grills
The new speakers grills in hexagon design look very aggressive and do not increase the overall speaker installation diameter.

Maximum Peak Power: 300 Watts
Maximum RMS Power: 100 Watts
Nominal Impedance: 4 Ohm
Frequency Response: 65Hz-40kHz
Sensitivity: 88dB SPL (1W @ 1m)
Woofer Mounting Depth: 6.3cm
Woofer Cutout Diameter: 13.5cm
